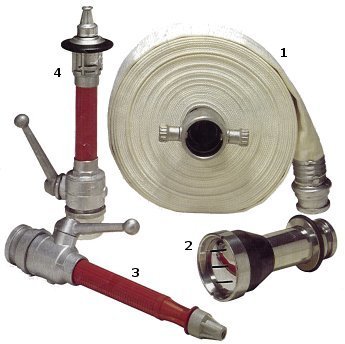

Fire Hose & Fitting
A full range of imported and locally manufactured fire hoses in synthetic fibre to meet all requirements. Percolating, non-percolating and wipe dry outer jackets. The hoses are available in the sizes indicated on the chart and should there be any doubt as to the diameter of the hose, the flat width should be measured and the diameter ascertained from the chart.
Standard hose lengths are 23m and 30m but can be supplied up to 35m on special order - couplings can be fitted to suit customer requirements.
| Diameter (mm) |
Flat width (mm) |
| 38 |
64 |
| 44 |
73 |
| 50 |
83 |
| 64 |
103 |
| 70 |
113 |
| 76 |
132 |

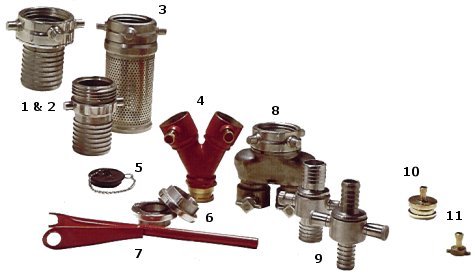

Couplings & Miscellaneous Fittings
- 1 & 2) 100mm female and male round thread light alloy suction coupling. (Pair).
- 3) 100mm light alloy suction strainer.
- 4) Dividing breeching.
- 5) Male instantaneous blank cap and chain.
- 6) Light alloy Storz couplings.
- 7) Suction coupling wrench.
- 8) 100 mm 2-way collector.
- 9) Light alloy instantaneous fire hose couplings 65mm and 44mm tails.
- 10) Male couplings to connect hose reel to hydrant.
- 11) Light alloy adaptor with tail.
